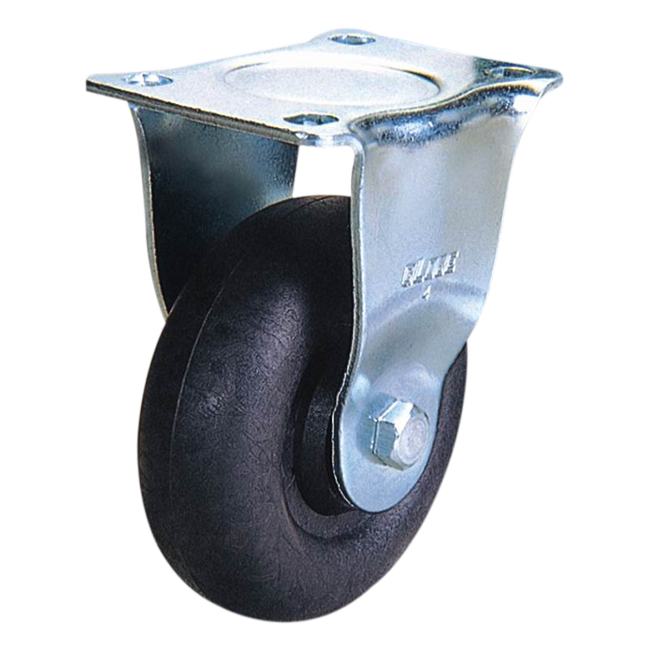

Hover to zoomDS-1139-04-41-1
Brand: Dersheng · China
Price on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity130 kg
Wheel Size4"
Wheel MaterialRubber
FunctionRigid
MountingTop Plate
Wheel Diameter100 mm
Tread Width32 mm
Overall Height130 mm
Top Plate Size104 X 85 mm
Bolt Hole Centre73 X 45 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Wheels with good elasticity, they are suitable for use on uneven surface. Recommended application (Industrial Trolleys)(Manual transpallet)(Flight cases for transporting musical instruments).
Floor Suitability
They are suitable for use on all types of floors, even in the presence of obstacles. They do not mark or damage fragile floors.
Origin
Dersheng – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|

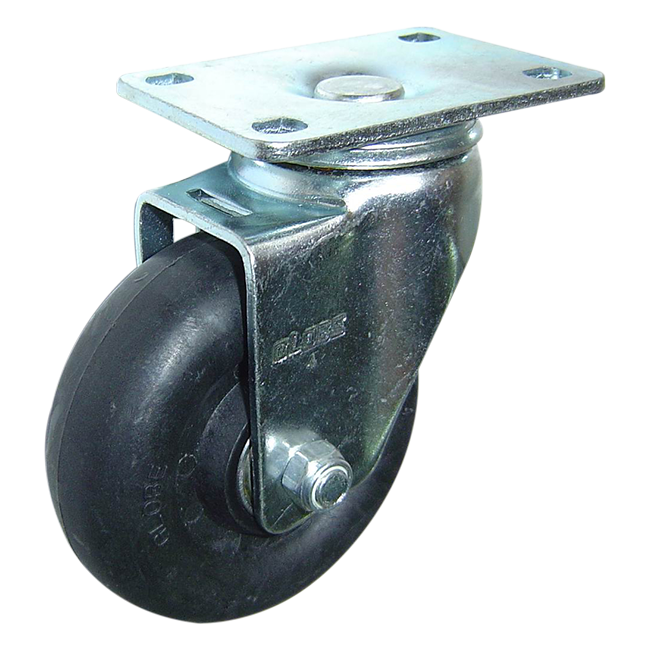

| 4" | DS-1139-04-41-2 | BLUE RUBBER | SWIVEL | 100 | 32 | 130 | 130 | 104 X 85 | 73 X 45 |
| 4" | DS-1139-04-41-1 | BLUE RUBBER | RIGID | 100 | 32 | 130 | 130 | 104 X 85 | 73 X 45 |
| 4" | DS-1139-04-41-4 | BLUE RUBBER | BRAKE | 100 | 32 | 130 | 130 | 104 X 85 | 73 X 45 |
| 4" | DS-04-41 | BLUE RUBBER | WHEEL | 100 | 32 | 130 | 40mm | 10mm | Ball Bearing |
| 5" | DS-1139-05-41-2 | BLUE RUBBER | SWIVEL | 125 | 32 | 140 | 154 | 104 X 85 | 73 X 45 |
| 5" | DS-1139-05-41-1 | BLUE RUBBER | RIGID | 125 | 32 | 140 | 154 | 104 X 85 | 73 X 45 |
| 5" | DS-1139-05-41-4 | BLUE RUBBER | BRAKE | 125 | 32 | 140 | 154 | 104 X 85 | 73 X 45 |
| 5" | DS-05-41 | BLUE RUBBER | WHEEL | 125 | 32 | 140 | 40mm | 10mm | Ball Bearing |
