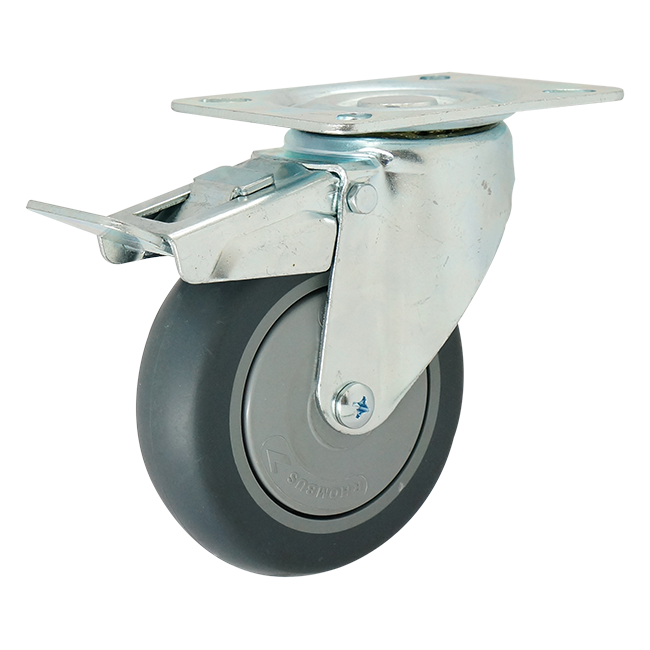

Hover to zoomRB-421h35K100rZPH
Brand: Rhombus · GermanyPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity100 kg
Wheel Size4"
Wheel MaterialGrey Rubber (Non-Marking)
FunctionBrake
MountingTop Plate
Wheel Diameter100 mm
Tread Width32 mm
Overall Height128 mm
Top Plate Size104 X 80 mm
Bolt Hole Centre80 X 60 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Indicated for trolleys with light-medium duty loads, mainly for indoor & outdoor use. Excellent rolling resistance and elasticity with non-marking.
Floor Suitability
Suitable for all types of industrial floor, it does not stain or damage fragile floors. Most recommended for Hospital and Hotel user.
Origin
Rhombus – Germany
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3" | RB-421a35K075rZPH | GREY RUBBER | SWIVEL | 80 | 30 | 80 | 107 | 104 X 80 | 80 X 60 |
| 3" | RB-419a35K075rZPG | GREY RUBBER | RIGID | 80 | 30 | 80 | 107 | 104 X 84 | 80 X 60 |
| 3" | RB-421h35K075rZPH | GREY RUBBER | BRAKE | 80 | 30 | 80 | 107 | 104 X 80 | 80 X 60 |
| 3" | RB-H35K075rZ | GREY RUBBER | WHEEL | 80 | 30 | 80 | 36mm | 8mm | BEARING |
| 4" | RB-421a35K100rZPH | GREY RUBBER | SWIVEL | 100 | 32 | 100 | 128 | 104 X 80 | 80 X 60 |
| 4" | RB-419a35K100rZPG | GREY RUBBER | RIGID | 100 | 32 | 100 | 128 | 104 X 84 | 80 X 60 |
| 4" | RB-421h35K100rZPH | GREY RUBBER | BRAKE | 100 | 32 | 100 | 128 | 104 X 80 | 80 X 60 |
| 4" | RB-H35K100rZ | GREY RUBBER | WHEEL | 100 | 32 | 100 | 36mm | 8mm | BEARING |
| 5" | RB-421a35K125rZPH | GREY RUBBER | SWIVEL | 125 | 32 | 110 | 152 | 104 X 80 | 80 X 60 |
| 5" | RB-419a35K125rZPG | GREY RUBBER | RIGID | 125 | 32 | 110 | 152 | 104 X 84 | 80 X 60 |
| 5" | RB-421h35K125rZPH | GREY RUBBER | BRAKE | 125 | 32 | 110 | 152 | 104 X 80 | 80 X 60 |
| 5" | RB-H35K125rZ | GREY RUBBER | WHEEL | 125 | 32 | 110 | 37mm | 8mm | BEARING |
Request a Quote for RB-421h35K100rZPH
Tell us the quantity and your application. We will reply with pricing and a recommendation.
