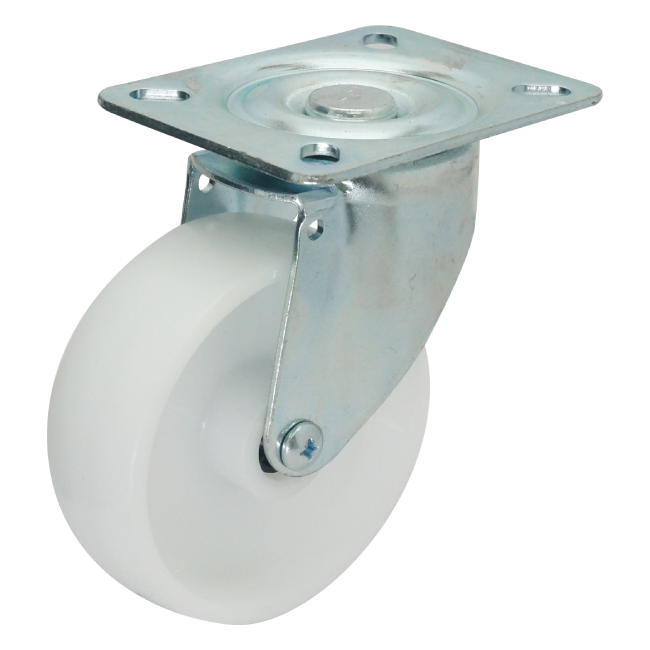

Hover to zoomRB-421a00RnZPH
Brand: Rhombus · GermanyPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity100 kg
Wheel Size3"
Wheel MaterialPolypropylene (PP)
FunctionSwivel
MountingTop Plate
Wheel Diameter80 mm
Tread Width33 mm
Overall Height107 mm
Top Plate Size104 X 80 mm
Bolt Hole Centre72 X 52 / 80 X 60 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Polypropylene white made it for Medium-Heavy capacities. Recommended application (Magazine carts) (Tool Trolleys) (Waste Containers) and etc…
Floor Suitability
Suitable for smooth and compact floors. Easy running and good manoeuvrability.
Origin
Rhombus – Germany
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3" | 421a00R080nZPH | PP | SWIVEL | 80 | 33 | 100 | 107 | 104 X 80 | 72 X 52 / 80 X 60 |
| 3" | 419a00R080nZPG | PP | RIGID | 80 | 33 | 100 | 107 | 104 X 80 | 72 X 52 / 80 X 60 |
| 3" | 421h00R080nZPH | PP | BRAKE | 80 | 33 | 100 | 107 | 104 X 80 | 72 X 52 / 80 X 60 |
| 3" | H00R080nZ | PP | WHEEL | 80 | 33 | 100 | 36mm | 12mm | Roller Bearing |
| 4" | 421a00R100nZPH | PP | SWIVEL | 100 | 35 | 125 | 128 | 104 X 80 | 72 X 52 / 80 X 60 |
| 4" | 419a00R100nZPG | PP | RIGID | 100 | 35 | 125 | 128 | 104 X 80 | 72 X 52 / 80 X 60 |
| 4" | 421h00R100ZPH | PP | BRAKE | 100 | 35 | 125 | 128 | 104 X 80 | 72 X 52 / 80 X 60 |
| 4" | H00R100nZ | PP | WHEEL | 100 | 35 | 125 | 36mm | 12mm | Roller Bearing |
| 5" | 421a00R125nZPH | PP | SWIVEL | 125 | 32 | 125 | 152 | 104 X 80 | 72 X 52 / 80 X 60 |
| 5" | 419a00R125nZPG | PP | RIGID | 125 | 32 | 125 | 152 | 104 X 80 | 72 X 52 / 80 X 60 |
| 5" | 421h00R125nZPH | PP | BRAKE | 125 | 32 | 125 | 152 | 104 X 80 | 72 X 52 / 80 X 60 |
| 5" | H00R125nZ STD | PP | WHEEL | 125 | 32 | 125 | 35mm | 12mm | Roller Bearing |
| 5" | 441a00R125nZPI | PP / TEBAL | SWIVEL | 125 | 40 | 150 | 156 | 115 X 85 | 80 X 55 / 80 X 60 |
| 5" | 439a00R125nZPI | PP | RIGID | 125 | 40 | 150 | 156 | 115 X 85 | 80 X 55 / 80 X 60 |
| 5" | H00R125nZ | PP | WHEEL | 125 | 40 | 150 | 48mm | 15mm | Roller Bearing |
| 6" | 441a00R160nZPK | PP | SWIVEL | 160 | 42 | 225 | 197 | 138 X 109 | 105 X 75 / 105 X 80 |
| 6" | 439a00R160nZPK | PP | RIGID | 160 | 42 | 225 | 197 | 138 X 109 | 105 X 75 / 105 X 80 |
| 6" | 441i00R160nZPK | PP | BRAKE | 160 | 42 | 225 | 197 | 138 X 109 | 105 X 75 / 105 X 80 |
| 6" | H00R160nZ | PP | WHEEL | 160 | 42 | 225 | 58mm | 20mm | Roller Bearing |
| 8" | 441a00R200nZPK | PP | SWIVEL | 200 | 50 | 300 | 237 | 138 X 109 | 105 X 75 / 105 X 80 |
| 8" | 439a00R200nZPK | PP | RIGID | 200 | 50 | 300 | 237 | 138 X 109 | 105 X 75 / 105 X 80 |
| 8" | 441i00R200nZPK | PP | BRAKE | 200 | 50 | 300 | 237 | 138 X 109 | 105 X 75 / 105 X 80 |
| 8" | H00R200nZ | PP | WHEEL | 200 | 50 | 300 | 58mm | 20mm | Roller Bearing |
Request a Quote for RB-421a00RnZPH
Tell us the quantity and your application. We will reply with pricing and a recommendation.
