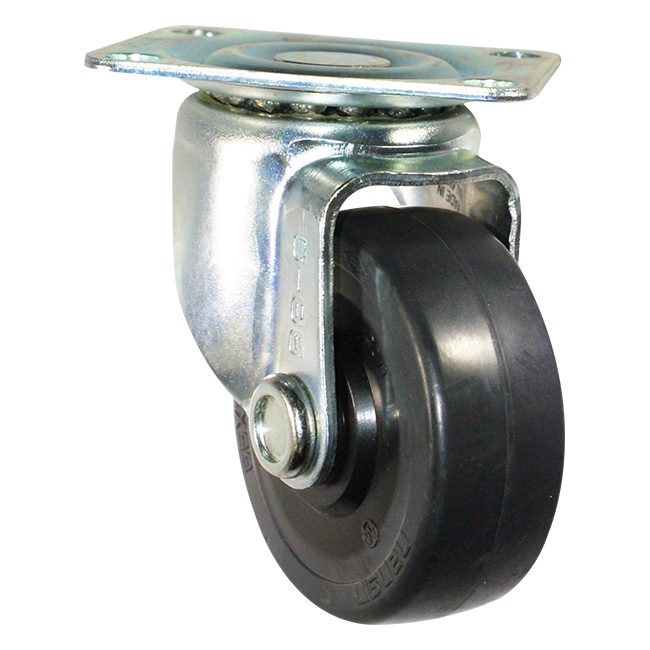

Hover to zoomNSG-STC65EM
Brand: Nansin · JapanPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity50 kg
Wheel Size2-1/2"
Wheel MaterialRubber
FunctionSwivel
MountingTop Plate
Wheel Diameter65 mm
Tread Width25 mm
Overall Height85 mm
Top Plate Size70 X 58 mm
Bolt Hole Centre55 X 42 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
The Nansin medium duty black rubber castor is excellent in overcoming of obstacles, vibration damping & noise reduction during use.
Floor Suitability
Suitable for all types of industrial floor, even outdoors floors, but they may mark the floor.
Origin
Nansin – Japan
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2 1/2" | STC065EM | SOLID RUBBER | SWIVEL | 65 | 25 | 50 | 85 | 70 X 58 | 55 X 42 |
| 2 1/2" | SKC065EM | SOLID RUBBER | RIGID | 65 | 25 | 50 | 85 | 70 X 52 | 55 X 28 |
| 2 1/2" | STC065EM-S1 | SOLID RUBBER | SIDE BRAKE | 65 | 25 | 50 | 85 | 70 X 58 | 55 X 42 |
| 2 1/2" | EM065 | SOLID RUBBER | WHEEL | 65 | 25 | 50 | 31mm | 8mm | Plain Bearing |
| 3" | STC075EM | SOLID RUBBER | SWIVEL | 75 | 25 | 60 | 93 | 70 X 58 | 55 X 42 |
| 3" | SKC075EM | SOLID RUBBER | RIGID | 75 | 25 | 60 | 93 | 70 X 52 | 55 X 28 |
| 3" | STC075EM-S1 | SOLID RUBBER | SIDE BRAKE | 75 | 25 | 60 | 93 | 70 X 58 | 55 X 42 |
| 3" | EM075 | SOLID RUBBER | WHEEL | 75 | 25 | 60 | 31mm | 8mm | Plain Bearing |
Request a Quote for NSG-STC65EM
Tell us the quantity and your application. We will reply with pricing and a recommendation.
