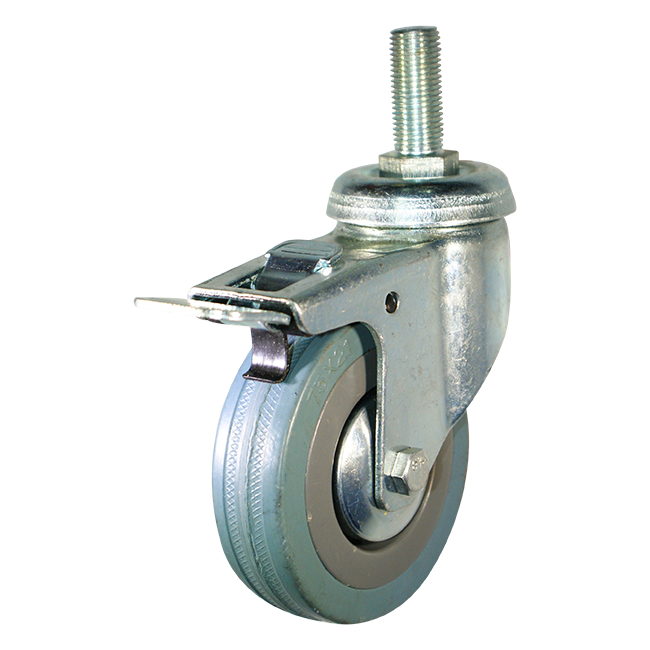

Hover to zoomKRS-720075DB
Brand: Kerisa · Malaysia / ChinaPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity50 kg
Wheel Size3"
Wheel MaterialGrey Rubber (Non-Marking)
FunctionTotal Brake
MountingStem
Wheel Diameter75 mm
Tread Width23 mm
Overall Height104 mm
Stem SizeUNF 1/2" mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Suitable for trolleys and machinery with light duty loads, also in case of continuous handling. Suitable for indoor & outdoor use.
Floor Suitability
Suitable for all types of industrial floor, they do not mark fragile floors.
Origin
Kerisa – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Diameter of Stem (mm) |
|---|---|---|---|---|---|---|---|---|
| 2" | KRS-720050 | GREY RUBBER | SWIVEL | 50 | 18 | 35 | 72 | UNF 1/2" |
| 2" | KRS-720050B | GREY RUBBER | SIDE BRAKE | 50 | 18 | 35 | 72 | UNF 1/2" |
| 3" | KRS-720075 | GREY RUBBER | SWIVEL | 75 | 23 | 50 | 104 | UNF 1/2" |
| 3" | KRS-720075DB | GREY RUBBER | TOTAL BRAKE | 75 | 23 | 50 | 104 | UNF 1/2" |
| 3" | KRS-720075-B | GREY RUBBER | SIDE BRAKE | 75 | 23 | 50 | 104 | UNF 1/2" |
| 4" | KRS-720100 | GREY RUBBER | SWIVEL | 100 | 27 | 65 | 135 | UNF 1/2" |
| 4" | KRS-720100DB | GREY RUBBER | TOTAL BRAKE | 100 | 27 | 65 | 135 | UNF 1/2" |
| 5" | KRS-720125 | GREY RUBBER | SWIVEL | 125 | 27 | 75 | 159 | UNF 1/2" |
| 5" | KRS-720125DB | GREY RUBBER | TOTAL BRAKE | 125 | 27 | 75 | 159 | UNF 1/2" |
Request a Quote for KRS-720075DB
Tell us the quantity and your application. We will reply with pricing and a recommendation.
