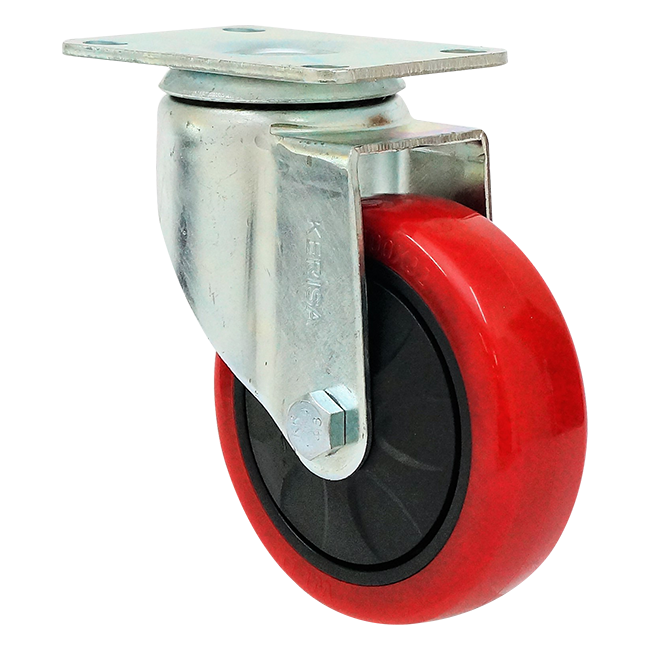

Hover to zoomKRS-36100S
Brand: Kerisa · Malaysia / ChinaPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity80 kg
Wheel Size4"
Wheel MaterialPolyurethane (PU)
FunctionSwivel
MountingTop Plate
Wheel Diameter100 mm
Tread Width32 mm
Overall Height130 mm
Top Plate Size95 X 67 mm
Bolt Hole Centre73 X 45 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Suitable for trolleys and machinery with medium duty loads, also in case of continuous handling. Suitable for indoor & outdoor use with frequent washing and sterilisation.
Floor Suitability
Suitable for all types of industrial floor, even outdoors floors, they do not mark fragile floors.
Origin
Kerisa – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3" | KRS-36075S | PU | SWIVEL | 75 | 32 | 70 | 107 | 95 X 67 | 73 X 45 |
| 3" | KRS-36075R | PU | RIGID | 75 | 32 | 70 | 107 | 95 X 67 | 73 X 45 |
| 3" | KRS-36075B | PU | TOTAL BRAKE | 75 | 32 | 70 | 107 | 95 X 67 | 73 X 45 |
| 3" | KRS-36075W | PU | WHEEL | 75 | 32 | 70 | 41mm | 10mm | Ball Bearing |
| 4" | KRS-36100S | PU | SWIVEL | 100 | 32 | 80 | 130 | 95 X 67 | 73 X 45 |
| 4" | KRS-36100R | PU | RIGID | 100 | 32 | 80 | 130 | 95 X 67 | 73 X 45 |
| 4" | KRS-36100B | PU | TOTAL BRAKE | 100 | 32 | 80 | 130 | 95 X 67 | 73 X 45 |
| 4" | KRS-36100W | PU | WHEEL | 100 | 32 | 80 | 41mm | 10mm | Ball Bearing |
| 5" | KRS-36125S | PU | SWIVEL | 125 | 32 | 90 | 154 | 95 X 67 | 73 X 45 |
| 5" | KRS-36125SR | PU | RIGID | 125 | 32 | 90 | 154 | 95 X 67 | 73 X 45 |
| 5" | KRS-36125B | PU | TOTAL BRAKE | 125 | 32 | 90 | 154 | 95 X 67 | 73 X 45 |
| 5" | KRS-36125W | PU | WHEEL | 125 | 32 | 90 | 41mm | 10mm | Ball Bearing |
