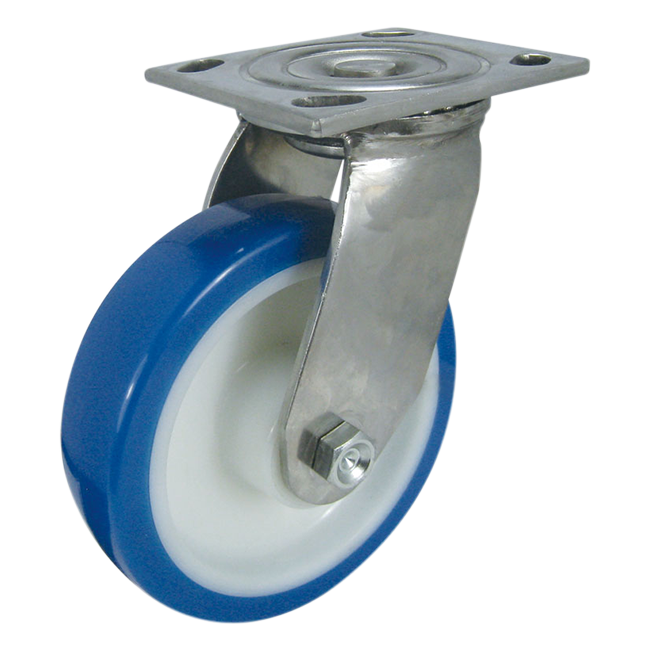

Hover to zoomHD-C560S-UN6200
Brand: Herdar · TaiwanPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity140 kg
Wheel Size4"
Wheel MaterialPolyurethane (PU)
FunctionSwivel
MountingTop Plate
Wheel Diameter100 mm
Tread Width40 mm
Overall Height143 mm
Top Plate Size116 X 100 mm
Bolt Hole Centre92 X 76 / 76 X 66 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
The blue thermoplastic polyurethane suitable for trolleys and machinery with medium-heavy duty loads.Also good resistance to wear and tearing with (Stainless Steel) body bracket. Suitable use with frequent washing and sterilisation.
Floor Suitability
Suitable for all types of industrial floor, even outdoors floors, they do not mark fragile floors. It easily overcome obstacles.
Origin
Herdar – Taiwan
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 4" | C560S/UN4200 | PU | SWIVEL | 100 | 40 | 140 | 143 | 116 X 100 | 92 X 76 / 76 X 66 |
| 4" | C560R/UN4200 | PU | RIGID | 100 | 40 | 140 | 143 | 116 X 100 | 92 X 76 / 76 X 66 |
| 4" | C560B/UN4200 | PU | SIDE BRAKE | 100 | 40 | 140 | 143 | 116 X 100 | 92 X 76 / 76 X 66 |
| 4" | UN4200 | PU | WHEEL | 100 | 40 | 140 | 45mm | 12.5mm | Roller Bearing |
| 5" | C560S/UN5200 | PU | SWIVEL | 125 | 40 | 180 | 165 | 116 X 100 | 92 X 76 / 76 X 66 |
| 5" | C560R/UN5200 | PU | RIGID | 125 | 40 | 180 | 165 | 116 X 100 | 92 X 76 / 76 X 66 |
| 5" | C560B/UN5200 | PU | SIDE BRAKE | 125 | 40 | 180 | 165 | 116 X 100 | 92 X 76 / 76 X 66 |
| 5" | UN45200 | PU | WHEEL | 125 | 40 | 180 | 45mm | 12.5mm | Roller Bearing |
| 6" | C560S/UN6200 | PU | SWIVEL | 150 | 50 | 250 | 190 | 116 X 100 | 92 X 76 / 76 X 66 |

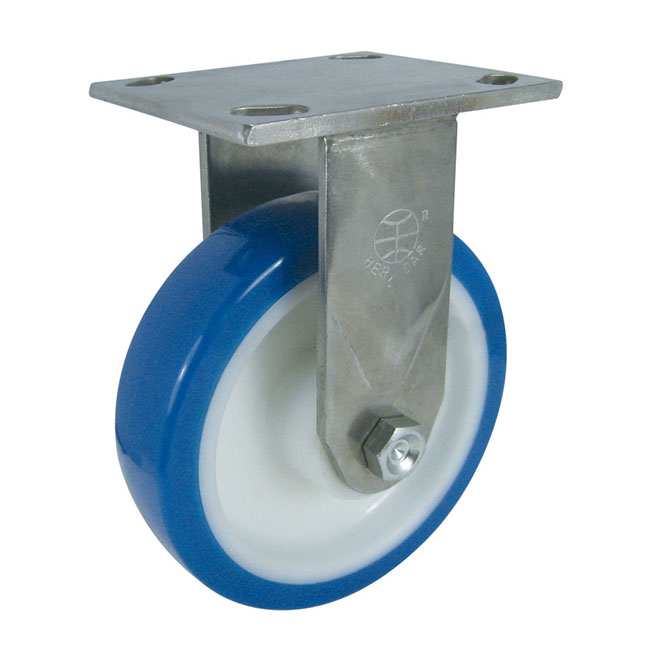

| 6" | C560R/UN6200 | PU | RIGID | 150 | 50 | 250 | 190 | 116 X 100 | 92 X 76 / 76 X 66 |
| 6" | C560B/UN6200 | PU | SIDE BRAKE | 150 | 50 | 250 | 190 | 116 X 100 | 92 X 76 / 76 X 66 |
| 6" | UN6200 | PU | WHEEL | 150 | 50 | 250 | 60mm | 12.5mm | Roller Bearing |
| 8" | C560S/UN8200 | PU | SWIVEL | 200 | 50 | 350 | 240 | 116 X 100 | 92 X 76 / 76 X 66 |
| 8" | C560R/UN8200 | PU | RIGID | 200 | 50 | 350 | 240 | 116 X 100 | 92 X 76 / 76 X 66 |
| 8" | C560B/UN8200 | PU | SIDE BRAKE | 200 | 50 | 350 | 240 | 116 X 100 | 92 X 76 / 76 X 66 |
| 8" | UN8200 | PU | WHEEL | 200 | 50 | 350 | 60mm | 12.5mm | Roller Bearing |
Request a Quote for HD-C560S-UN6200
Tell us the quantity and your application. We will reply with pricing and a recommendation.
