Hover to zoomHD-C511RM620MF
Brand: Herdar · TaiwanPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity160 kg
Wheel Size4"
Wheel MaterialRubber
FunctionSwivel
MountingTop Plate
Wheel Diameter100 mm
Tread Width50 mm
Overall Height141 mm
Top Plate Size136 X 110 mm
Bolt Hole Centre98 X 72 / 112 X 84 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Suitable for trolleys with medium-duty loads, also in the presence of obsctacles and for indoor-outdoor use.
Floor Suitability
Suitable for all types of industrial floor,even outdoors floors.It easily overcome obstacles but they may mark the floor.
Origin
Herdar – Taiwan
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|

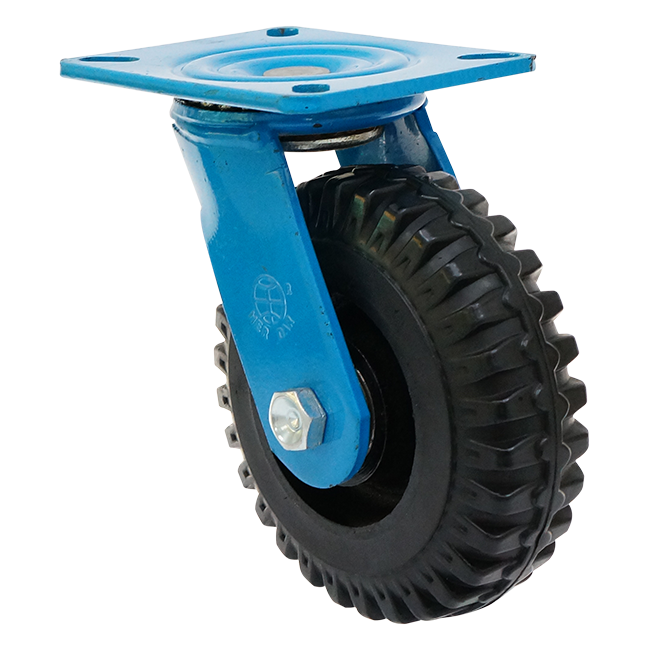

| 4" | C511SM420MF | RUBBER | SWIVEL | 100 | 50 | 160 | 141 | 136 X 110 | 98 X 72 / 112 X 84 |
| 4" | C511RM420MF | RUBBER | RIGID | 100 | 50 | 160 | 141 | 136 X 110 | 98 X 72 / 112 X 84 |
| 4" | A420MF | RUBBER | WHEEL | 100 | 50 | 160 | 2-3/16" | 17mm | Ball Bearing |
| 5" | C511SM520MF | RUBBER | SWIVEL | 125 | 50 | 180 | 165 | 136 X 110 | 98 X 72 / 112 X 84 |
| 5" | C511RM520MF | RUBBER | RIGID | 125 | 50 | 180 | 165 | 136 X 110 | 98 X 72 / 112 X 84 |
| 5" | A520MF | RUBBER | WHEEL | 125 | 50 | 180 | 2-3/16" | 17mm | Ball Bearing |
| 6" | C511SM620MF | RUBBER | SWIVEL | 150 | 50 | 200 | 190 | 136 X 110 | 98 X 72 / 112 X 84 |
| 6" | C511RM620MF | RUBBER | RIGID | 150 | 50 | 200 | 190 | 136 X 110 | 98 X 72 / 112 X 84 |
| 6" | A620MF | RUBBER | WHEEL | 150 | 50 | 200 | 2-3/16" | 17mm | Ball Bearing |
| 8" | C511SM820MF | RUBBER | SWIVEL | 200 | 50 | 250 | 240 | 136 X 110 | 98 X 72 / 112 X 84 |
| 8" | C511RM820MF | RUBBER | RIGID | 200 | 50 | 250 | 240 | 136 X 110 | 98 X 72 / 112 X 84 |
| 8" | A820MF | RUBBER | WHEEL | 200 | 50 | 250 | 2-3/16" | 17mm | Ball Bearing |
Request a Quote for HD-C511RM620MF
Tell us the quantity and your application. We will reply with pricing and a recommendation.
