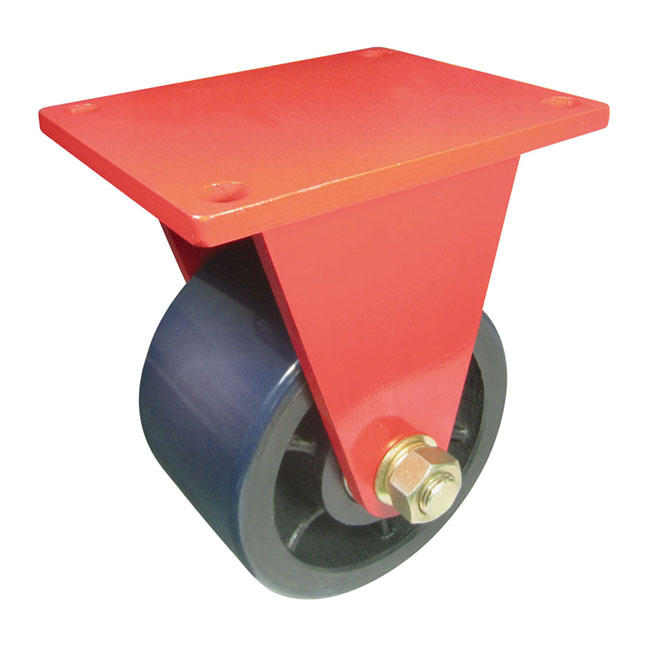

Hover to zoomGB-EK01-17-200R-107
Brand: Globe · ChinaPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity2500 kg
Wheel Size8"
Wheel MaterialNylon
FunctionRigid
MountingTop Plate
Wheel Diameter200 mm
Tread Width50 mm
Overall Height250 mm
Top Plate Size140 X 110 mm
Bolt Hole Centre110 X 75 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Intended mainly for very high carrying capacities uses. The excellent rolling resistance ensures that a minimum manual effort is needed when handling, but only on smooth floors.
Floor Suitability
Suitable for all types of industrial floor, they do not mark fragile floors. It easily overcome obstacles.
Origin
Globe – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 6" X 2" | GB-EK01-17-150S-107 | NYLON | SWIVEL | 150 | 50 | 2000 | 199 | 140 X 110 | 110 X 75 |
| 6" X 2" | GB-EK01-17-150R-107 | NYLON | RIGID | 150 | 50 | 2000 | 199 | 140 X 110 | 110 X 75 |
| 6" X 2" | GB-EK01-17-150SA-107 | NYLON | TOTAL BRAKE | 150 | 50 | 2000 | 199 | 140 X 110 | 110 X 75 |
| 6" X 2" | GB-EK01-1-150K-107 | NYLON | WHEEL | 150 | 50 | 2000 | 63mm | 18mm | Ball Bearing |

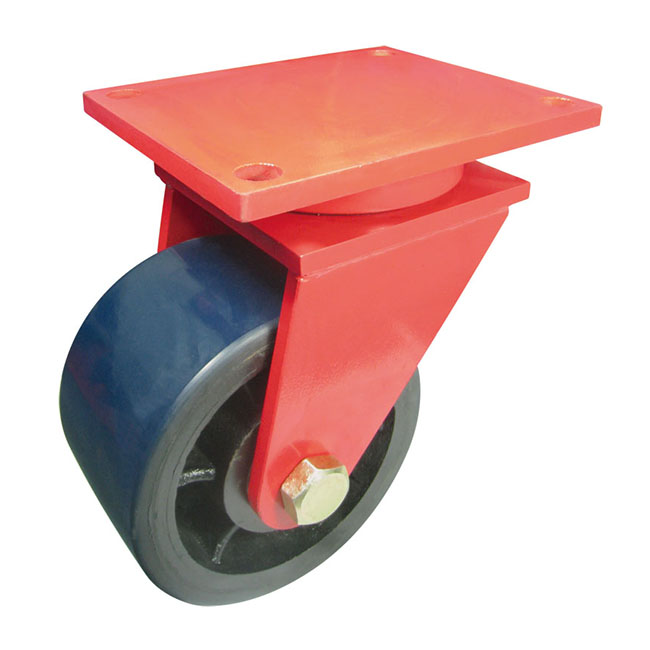

| 8" X 2" | GB-EK01-17-200S-107 | NYLON | SWIVEL | 200 | 50 | 2500 | 250 | 140 X 110 | 110 X 75 |
| 8" X 2" | GB-EK01-17-200R-107 | NYLON | RIGID | 200 | 50 | 2500 | 250 | 140 X 110 | 110 X 75 |
| 8" X 2" | GB-EK01-17-200SA-107 | NYLON | TOTAL BRAKE | 200 | 50 | 2500 | 250 | 140 X 110 | 110 X 75 |
| 8" X 2" | GB-EK01-1-200K-107 | NYLON | WHEEL | 200 | 50 | 2500 | 63mm | 18mm | Ball Bearing |
