Hover to zoomGB-EG01-11-125SC-208
Brand: Globe · ChinaPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity250 kg
Wheel Size5"
Wheel MaterialNylon
FunctionSide Brake
MountingTop Plate
Wheel Diameter125 mm
Tread Width38 mm
Overall Height165 mm
Top Plate Size114 X 100 mm
Bolt Hole Centre84 X 71 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
The meili brown nylon designed to improve trolleys’ handling under medium and heavy loads on uneven surface. The excellent rolling resistance ensures that a minimum manual effort is needed when handling, but only on smooth floors.
Floor Suitability
Suitable for all types of industrial floor, they do not mark fragile floors. It easily overcome obstacles.
Origin
Globe – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 4" | GB-EG01-11-100S-208 | MEILI BROWN NYLON | SWIVEL | 100 | 38 | 200 | 140 | 114 X 100 | 84 X 71 |
| 4" | GB-EG01-11-100R-208 | MEILI BROWN NYLON | RIGID | 100 | 38 | 200 | 140 | 114 X 100 | 84 X 71 |
| 4" | GB-EG01-11-100SC-208 | MEILI BROWN NYLON | SIDE BRAKE | 100 | 38 | 200 | 140 | 114 X 100 | 84 X 71 |
| 4" | GB-EG01-1-100K-208 | MEILI BROWN NYLON | WHEEL | 100 | 38 | 200 | 55mm | 12mm | Ball Bearing |

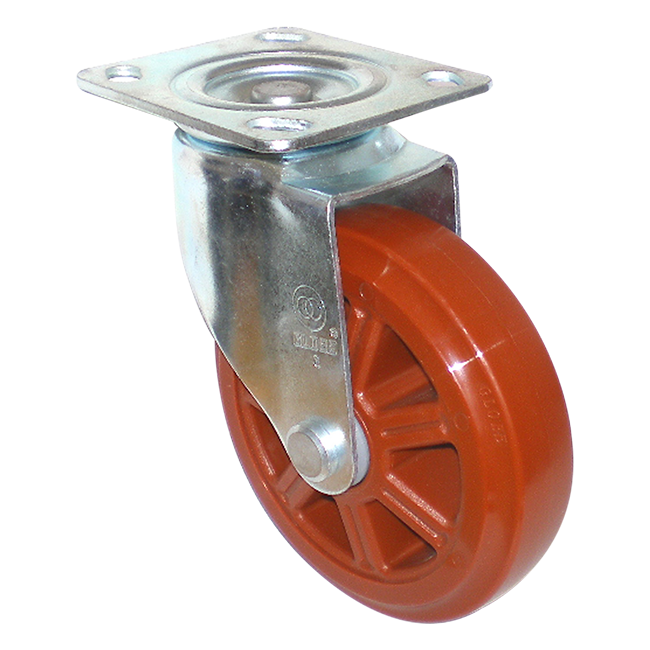

| 5" | GB-EG01-11-125S-208 | MEILI BROWN NYLON | SWIVEL | 125 | 38 | 250 | 165 | 114 X 100 | 84 X 71 |

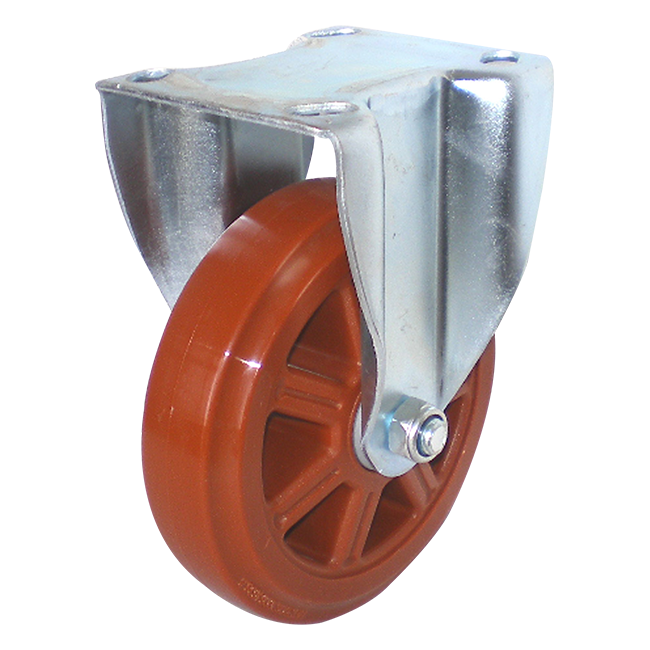

| 5" | GB-EG01-11-125R-208 | MEILI BROWN NYLON | RIGID | 125 | 38 | 250 | 165 | 114 X 100 | 84 X 71 |
| 5" | GB-EG01-11-125SC-208 | MEILI BROWN NYLON | SIDE BRAKE | 125 | 38 | 250 | 165 | 114 X 100 | 84 X 71 |
| 5" | GB-EG01-1-125K-208 | MEILI BROWN NYLON | WHEEL | 125 | 38 | 250 | 55mm | 12mm | Ball Bearing |
| 6" | GB-EG01-11-150S-208 | MEILI BROWN NYLON | SWIVEL | 150 | 40 | 300 | 190 | 114 X 100 | 84 X 71 |
| 6" | GB-EG01-11-150R-208 | MEILI BROWN NYLON | RIGID | 150 | 40 | 300 | 190 | 114 X 100 | 84 X 71 |
| 6" | GB-EG01-11-150SC-208 | MEILI BROWN NYLON | SIDE BRAKE | 150 | 40 | 300 | 190 | 114 X 100 | 84 X 71 |
| 6" | GB-EG01-1-150K-208 | MEILI BROWN NYLON | WHEEL | 150 | 40 | 300 | 55mm | 12mm | Ball Bearing |
| 8" | GB-EG01-11-200S-208 | MEILI BROWN NYLON | SWIVEL | 200 | 45 | 350 | 240 | 114 X 100 | 84 X 71 |
| 8" | GB-EG01-11-200R-208 | MEILI BROWN NYLON | RIGID | 200 | 45 | 350 | 240 | 114 X 100 | 84 X 71 |
| 8" | GB-EG01-11-200SC-208 | MEILI BROWN NYLON | SIDE BRAKE | 200 | 45 | 350 | 240 | 114 X 100 | 84 X 71 |
| 8" | GB-EG01-1-200K-208 | MEILI BROWN NYLON | WHEEL | 200 | 45 | 350 | 55mm | 12mm | Ball Bearing |
