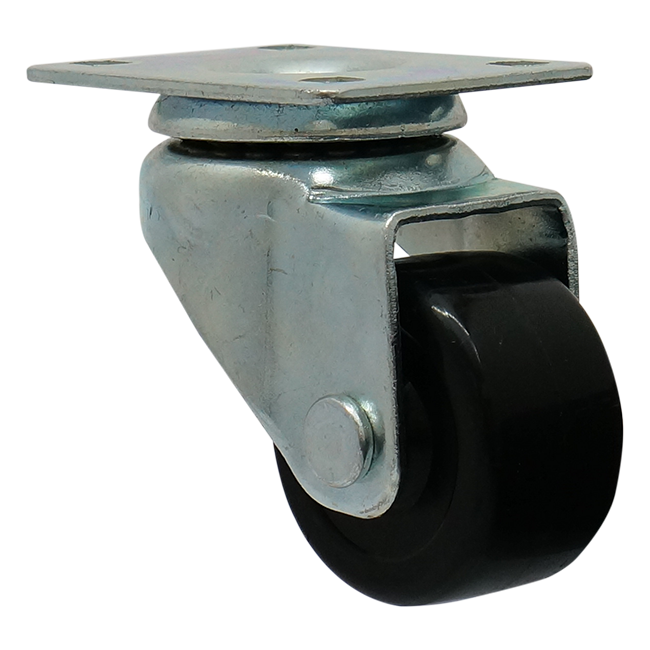

Hover to zoomGB-3303815
Brand: Globe · ChinaPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity100 kg
Wheel Size2"
Wheel MaterialNylon
FunctionSwivel
MountingTop Plate
Wheel Diameter50 mm
Tread Width28 mm
Overall Height75 mm
Top Plate Size70 X 55 mm
Bolt Hole Centre52 X 36 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Suitable for trolleys and machinery with light and medium-duty loads, also good resistance to wear and tearing. Suitable use with frequent washing and sterilisation.
Floor Suitability
Suitable for all types of industrial floor, they do not mark fragile floors.
Origin
Globe – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2" | GB-3303815 | NYLON | SWIVEL | 50 | 28 | 100 | 75 | 70 X 55 | 52 X 36 |
| 2" | GB-3303815A | NYLON | RIGID | 50 | 28 | 100 | 75 | 70 X 55 | 52 X 36 |
| 2" | GB-3303815SB | NYLON | SIDE BRAKE | 50 | 28 | 100 | 75 | 70 X 55 | 52 X 36 |
| 2" | GB-3303815B | NYLON | WHEEL | 50 | 38 | 100 | 33mm | 8mm | Bushing |
| 2 1/2" | GB-3303816 | NYLON | SWIVEL | 65 | 40 | 150 | 94 | 94 X 67 | 73 X 45 |
| 2 1/2" | GB-3303816A | NYLON | RIGID | 65 | 40 | 150 | 94 | 94 X 67 | 73 X 45 |
| 2 1/2" | GB-EF-12-11-065SC-101 | NYLON | SIDE BRAKE | 65 | 40 | 150 | 94 | 94 X 67 | 73 X 45 |
| 2 1/2" | GB-3303816B | NYLON | WHEEL | 65 | 40 | 150 | 47mm | 10mm | Ball Bearing |
| 3" | GB-3303817 | NYLON | SWIVEL | 75 | 45 | 200 | 105 | 105 X 80 | 81 X 59 |
| 3" | GB-3303817A | NYLON | RIGID | 75 | 45 | 200 | 105 | 105 X 80 | 81 X 59 |
| 3" | GB-EF-12-11-075SC-101 | NYLON | SIDE BRAKE | 75 | 45 | 200 | 105 | 105 X 80 | 81 X 59 |
| 3" | GB-3303817B | NYLON | WHEEL | 75 | 45 | 200 | 52mm | 10mm | Ball Bearing |
Request a Quote for GB-3303815
Tell us the quantity and your application. We will reply with pricing and a recommendation.
