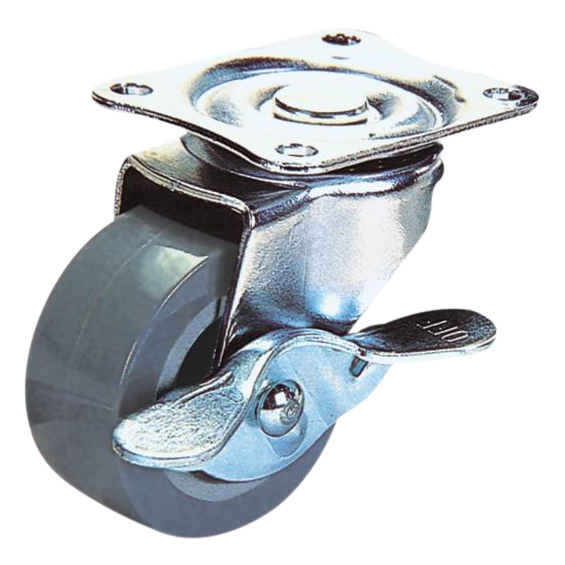

Hover to zoomGB-2202438
Brand: Globe · ChinaPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity30 kg
Wheel Size2"
Wheel MaterialPolyurethane (PU)
FunctionSide Brake
MountingTop Plate
Wheel Diameter50 mm
Tread Width22 mm
Overall Height65 mm
Top Plate Size58 X 47 mm
Bolt Hole Centre46 X 35 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Suitable for trolleys and machinery with light duty loads, also in case of continuous handling. Suitable for indoor & outdoor use.
Floor Suitability
Suitable for all types of industrial floor, they do not mark fragile floors.
Origin
Globe – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2" | GB-2202426 | GREY PU | SWIVEL | 50 | 22 | 30 | 65 | 58 X 47 | 46 X 35 |
| 2" | GB-2202427 | GREY PU | RIGID | 50 | 22 | 30 | 65 | 58 X 40 | 45 X 25 |
| 2" | GB-2202438 | GREY PU | SIDE BRAKE | 50 | 22 | 30 | 65 | 58 X 47 | 46 X 35 |
| 2 1/2" | GB-2202429 | GREY PU | SWIVEL | 65 | 27 | 40 | 82 | 70 X 58 | 55 X 42 |
| 2 1/2" | GB-2202430 | GREY PU | RIGID | 65 | 27 | 40 | 82 | 70 X 47 | 55 X 28 |
| 2 1/2" | GB-2202439 | GREY PU | SIDE BRAKE | 65 | 27 | 40 | 82 | 70 X 58 | 55 X 42 |
| 3" | GB-2202432 | GREY PU | SWIVEL | 75 | 27 | 50 | 93 | 70 X 58 | 55 X 42 |
| 3" | GB-2202433 | GREY PU | RIGID | 75 | 27 | 50 | 93 | 70 X 47 | 55 X 28 |
| 3" | GB-2202440 | GREY PU | SIDE BRAKE | 75 | 27 | 50 | 93 | 70 X 58 | 55 X 42 |
Request a Quote for GB-2202438
Tell us the quantity and your application. We will reply with pricing and a recommendation.
