Hover to zoomDL-E22NNI080S
Brand: Denly · GermanyPrice on requestPricing depends on quantity and configuration. Get a quote in one message.
Load Capacity180 kg
Wheel Size3"
Wheel MaterialNylon
FunctionSwivel
MountingTop Plate
Wheel Diameter80 mm
Tread Width32 mm
Overall Height108 mm
Top Plate Size105 X 85 mm
Bolt Hole Centre80 X 60 / 77 X 60 mm
Brand-new quality parts
Free selection advice
Consultation worldwide
Applications
Suitable for trolleys and machinary with medium duty loads, also good resistance to wear and tearing with (Stainless Steel) body bracket. Suitable use with frequent washing and sterilisation.
Floor Suitability
Suitable for all types of industrial floor, even outdoors floors, they do not mark fragile floors.
Origin
Denly Germany – Made in China
Not sure this is the right castor?
Tell us your load, floor and environment. Our specialists will confirm the best model for your equipment, free of charge.
The highlighted row is this model. Other rows are variants in the same series (size, brake or tread options).
| Size | Model No | Material | Function | Wheel Size (mm) | Width (mm) | Capacity (kg) | Height (mm) | Size of Plate (mm) | Hole Centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3" | E22NNI080S | NYLON | SWIVEL | 80 | 32 | 180 | 108 | 105 X 85 | 80 X 60 / 77 X 60 |

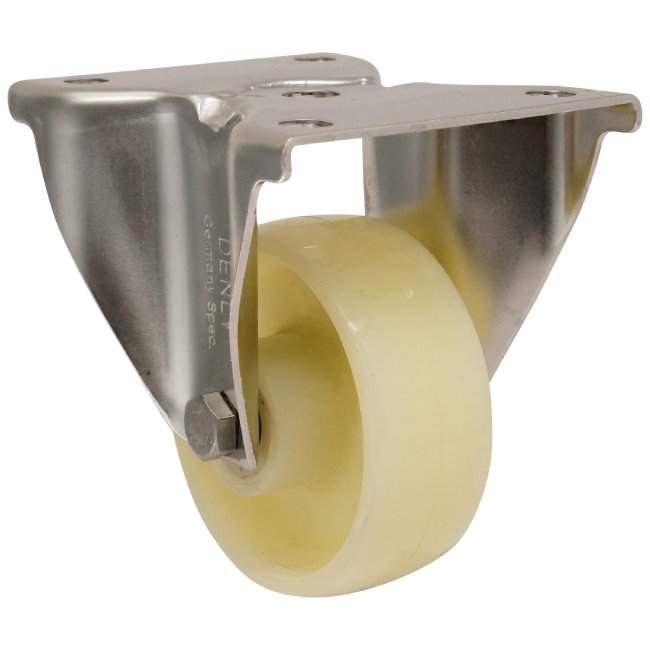

| 3" | E22NNI080R | NYLON | RIGID | 80 | 32 | 180 | 108 | 105 X 85 | 80 X 60 / 77 X 60 |

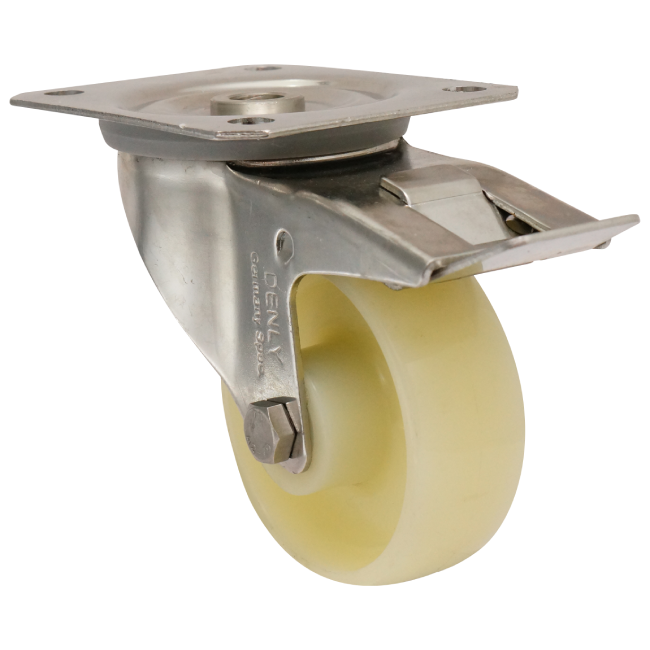

| 3" | E22NNI080SB3 | NYLON | BRAKE | 80 | 32 | 180 | 108 | 105 X 85 | 80 X 60 / 77 X 60 |
| 3" | NNI080 | NYLON | WHEEL | 80 | 32 | 180 | 44.5mm | 12mm | Plain Bearing |
| 4" | E22NNI100S | NYLON | SWIVEL | 100 | 32 | 190 | 128 | 105 X 85 | 80 X 60 / 77 X 60 |
| 4" | E22NNI100R | NYLON | RIGID | 100 | 32 | 190 | 128 | 105 X 85 | 80 X 60 / 77 X 60 |
| 4" | E22NNI100SB3 | NYLON | BRAKE | 100 | 32 | 190 | 128 | 105 X 85 | 80 X 60 / 77 X 60 |
| 4" | NNI100 | NYLON | WHEEL | 100 | 32 | 190 | 44.5mm | 12mm | Plain Bearing |
| 5" | E22NNI125S | NYLON | SWIVEL | 125 | 32 | 210 | 155 | 105 X 85 | 80 X 60 / 77 X 60 |
| 5" | E22NNI125R | NYLON | RIGID | 125 | 32 | 210 | 155 | 105 X 85 | 80 X 60 / 77 X 60 |
| 5" | E22NNI125SB3 | NYLON | BRAKE | 125 | 32 | 210 | 155 | 105 X 85 | 80 X 60 / 77 X 60 |
| 5" | NNI125 | NYLON | WHEEL | 125 | 32 | 210 | 44.5mm | 12mm | Plain Bearing |
| 6" | E22NNI160S | NYLON | SWIVEL | 160 | 45 | 300 | 200 | 137 X 105 | 105 X 80 / 105 X 75 |
| 6" | E22NNI160R | NYLON | RIGID | 160 | 45 | 300 | 200 | 137 X 105 | 105 X 80 / 105 X 75 |
| 6" | E22NNI160SB3 | NYLON | BRAKE | 160 | 45 | 300 | 200 | 137 X 105 | 105 X 80 / 105 X 75 |
| 6" | NNI160 | NYLON | WHEEL | 160 | 45 | 300 | 58.5mm | 20mm | Plain Bearing |
| 8" | E22NNI200S | NYLON | SWIVEL | 200 | 50 | 350 | 240 | 137 X 105 | 105 X 80 / 105 X 75 |
| 8" | E22NNI200R | NYLON | RIGID | 200 | 50 | 350 | 240 | 137 X 105 | 105 X 80 / 105 X 75 |
| 8" | E22NNI200SB3 | NYLON | BRAKE | 200 | 50 | 350 | 240 | 137 X 105 | 105 X 80 / 105 X 75 |
| 8" | NNI200 | NYLON | WHEEL | 200 | 50 | 350 | 58.5mm | 20mm | Plain Bearing |
Request a Quote for DL-E22NNI080S
Tell us the quantity and your application. We will reply with pricing and a recommendation.
